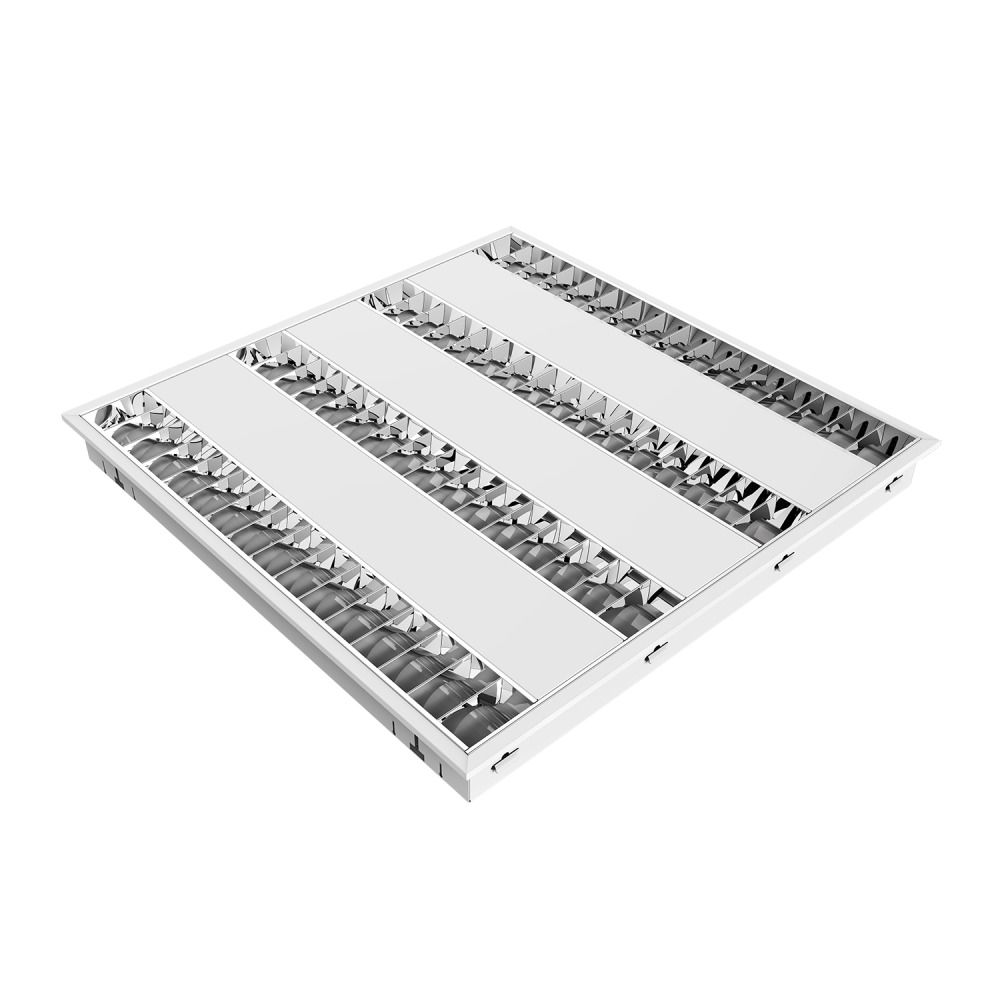

Noxion LED Panel Louvre 60x60cm 4000K UGR<15 | Cool White - Replaces 4x18W

Specifications Noxion LED Panel Louvre 60x60cm 4000K UGR<15 | Cool White - Replaces 4x18W

Please note: This product is not a regularly stock item. If the stock status is ” not on stock “, then we can order this item for you. For this item there is a no-return policy applied.
General Information
SKU 222678
Manufacturer Name Noxion LED Proled Microlens 38W 4000K 85 L/W 60x60 GST18i3 connect. (4x18W eqv.)
Any Lamp all-in warranty 5 Years
?
Energy efficiency class A++
?
Average Lifetime (h) 50000
Measurement Report(s) LM79, LM80
Technical Information
Technology LED Integrated
Replaces (Watt) 4x18
?
Wattage 38
Voltage (V) 220-240
Dimmable No
?
Light Colour 4000K - Cool White
?
Colour Code 840 - Cool White
?
Color Rendering (Ra) 80-89
?
Light Output (Lumen) 3230
?
Beam Angle (degree) 90
?
Driver Included Yes
Luminous Efficacy (Lm/W) 85
?
Power factor >0.95
?
Fixture Information
EAN 8719157000819
Including Lamp Yes
Mounting Method Recessed
Fixture Connection GST18i3
Installation Depth (mm) 55
Unified Glare Ratio < 15
?
Optical Cover Microprismatice lens
Suitable for Outdoor No
IP-Rating IP20
?
Impact Protection (IK) IK02
?
Operating Temperature -10 till + 40
Housing Aluminum
Color of the Fixture White
Emergency Lighting No
?
Series Pronox
Dimensions
LED panel size 60x60cm
Length (mm) 595
Width (mm) 595
Height (mm) 60
Read moreSwipe Up
Downloads
Download product sheet
Try and buy
this product

Description Noxion LED Panel Louvre 60x60cm 4000K UGR<15 | Cool White - Replaces 4x18W

Noxion LED Proled recessed fixture

Product description:

The Noxion LED Proled recessed fixture has been specifically designed for use in environments such as; offices, conference rooms, shopping malls, libraries, hospitals, clinics and schools. Due to a very low glare factor / Unified Glare Ratio (UGR) of 18 and below. Conventional TL-D fixtures can be replaced directly by the Proled fixture. This can help you save up to 50% on your energy costs.

Components:

During the product development process the focus was placed on aspects such as design, quality and durability. To reduce the risk of corrosion and abrasion anodized aluminum is used within the fixture. This is also of great importance for heat dissipation, and thermal management. This is essential in order to ensure that the LED chips have optimum efficiency of luminous flux over their lifetime. In addition, the micro-prismatic diffuser ensures a uniform and pleasant light. This fixture includes a high quality driver and premium LED chips (in accordance with LM80). In addition, it is easy to install. The Led Proled fixture comes standard with a GST18 i3 connector.

Optional:

  • Dali
  • Zigbee

Color (CCT):

  • 4000K

Service:

Due to an excellent composition of components Noxion has been able to provide you with a 5 year guarantee for this LED fixture. Do you have any questions after reading the above information, please do not hesitate to contact one of our advisors.
